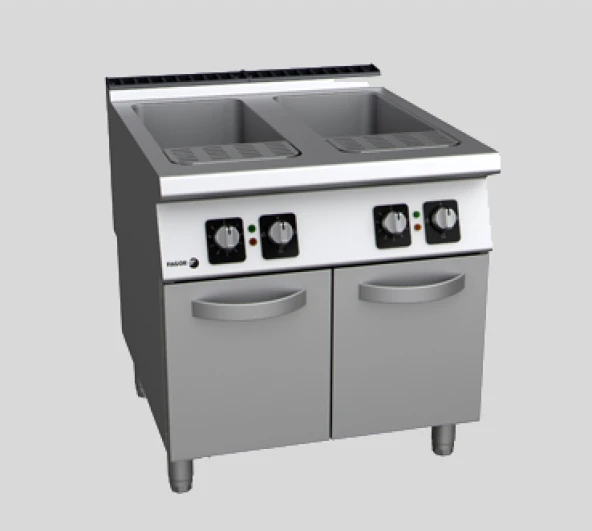

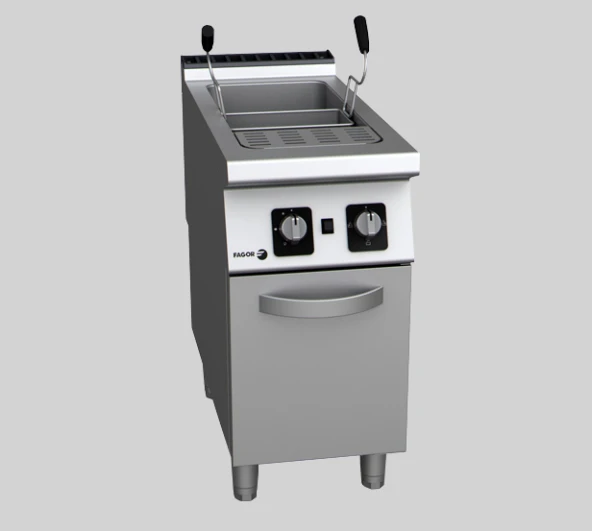

FAGOR COMMERCIAL PASTA COOKERS

Description :
- Surface tops manufactured in 1.5 mm thick
AISI-304 stainless steel.
- Laser-cut joints, automatic welding and
polished.
- 1.5 mm thick AISI-316L stainless steel wells
built into the surface top.
- 2 well sizes
· GN-2/3 wells, with 26 litre capacity
· GN-1/1 wells, with 40 litre capacity
- The well is filled through the inlet solenoid
valve with a two-position switch: average and
high-speed filling.
- Well drainage through a mechanical ball
valve which is resistant to high temperatures
and has a safety overflow.
- Automatic safety system to stop the current
if the water runs out.

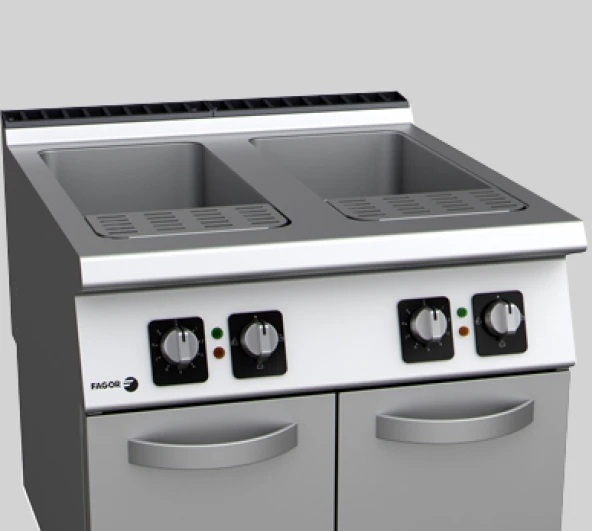

- Controls with a protective support base and
system to prevent water infiltration.
- Machines with IPX5 grade water protection.
GAS MODELS
- High-performance stainless-steel burner
located outside of the well with a
combustion chamber that enables
heating of the base and sides of the well (up
to the minimum filling level)
- Burner ignition through electronic spark
igniter. With an access tube for
manual ignition
- Heating controlled through safety valve.
ELECTRIC MODELS
- AISI 304 stainless-steel heating elements
located inside the well to directly heat the
water.
- Heating controlled through energy regulator.
- Voltage: 400 V 3+N. For other voltages,
consult the options at the end of the chapter.
Standard provision

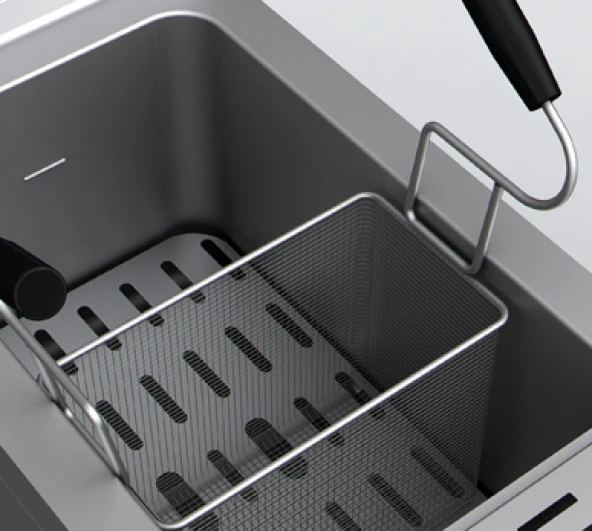

- 26 L models: 2 x 1/3 baskets per well
- 40 L models: 3 x 1/3 baskets per well
Optional accessories: (See accessories page
at the end of the chapter)
- 6 x 1/6 square baskets kit
- 6 x 1/6 round baskets kit
- 4 x ¼ baskets kit
- 2 x ½ baskets kit
