Kitchen Equipment
Dishwasher
Brand : FAGOR

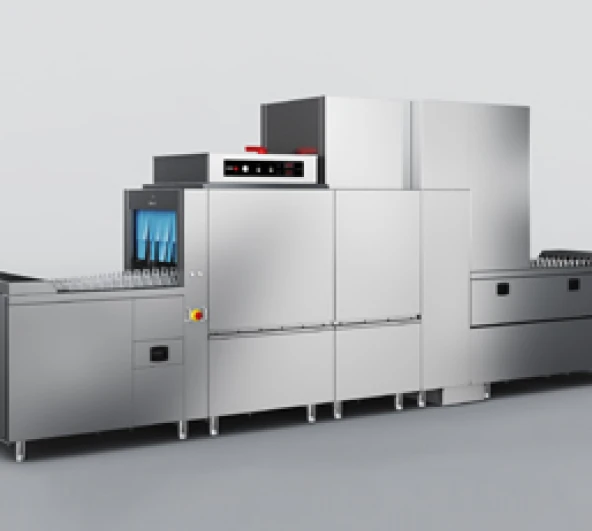

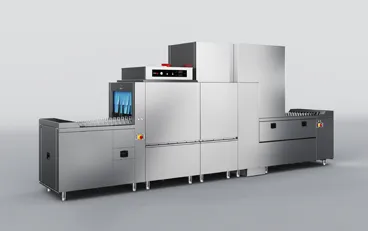

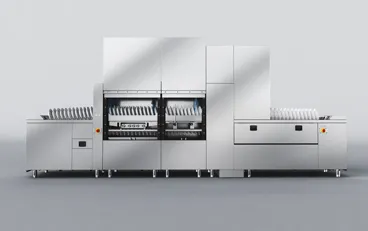

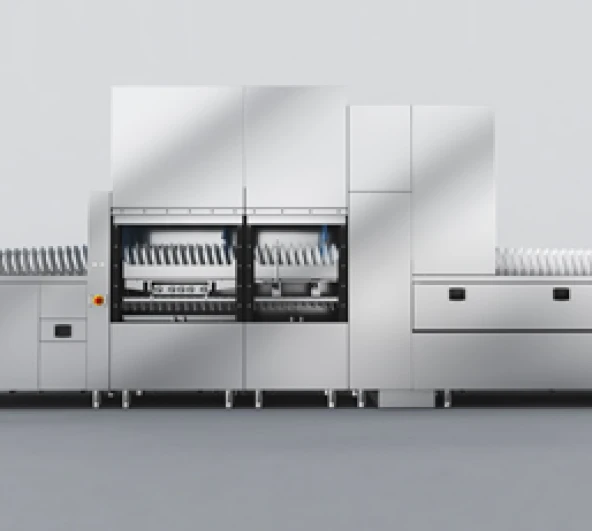

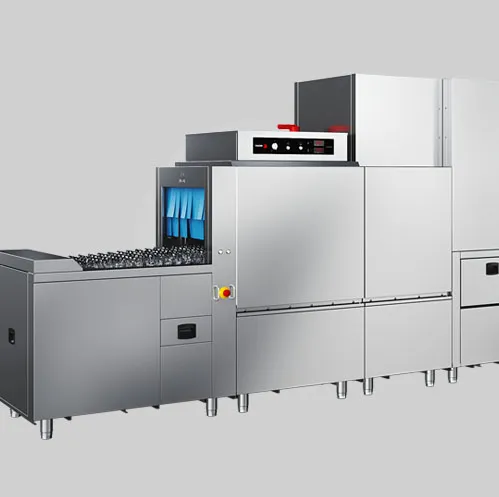

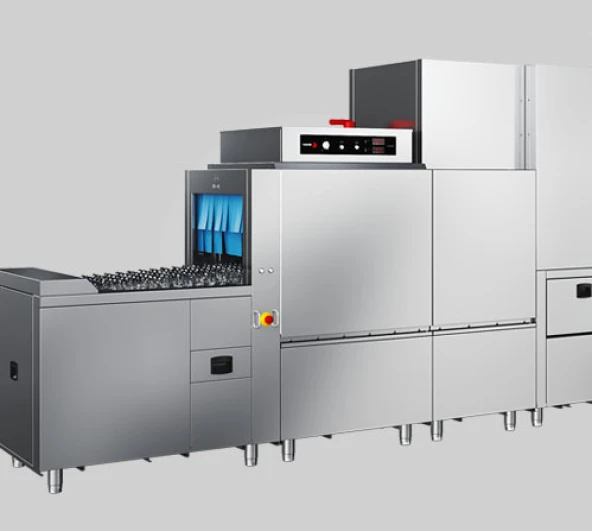

FAGOR Flight Type Dishwasher FCO-W4-RD R
Description :
- Wash modules without inner piping.
- Double-skin construction.
- Double-skin doors with thermal and acoustic insulation.
- Counterweighted doors with safety stops allow full
unrestricted access to the pre-wash, wash, pre-rinse and
rinse areas.
- Modular construction allowing the machine to be divided
on site into narrower modules.
- Loading area of 763 mm and unloading area of 830 mm
useful lenght at 900 mm height.
- 150 mm splash (AS) guard module at the loading area.
- Activation of the washing process by photocell.
- Belt drive speed controlled by a frequency converter and
a micro cut-off which, in the event of any kind of blockage,
stops the machine without causing any damage to it. It
has an unblocking feature that reverses the belt to help
clear the jam.
- Autotimer: after a period of inactivity, the traction motor is
deactivated, reducing power consumption.
- Power-saving mode (stand-by): Reduction of power
consumption and limescale deposition on the heating
element by reducing the temperature of the boiler and tank
water when the machine is not in operation.
- Automatic pre-heating system. Activation of the washing
pumps and the dryers prior to reaching the setpoint
temperatures to heat the environment and thus achieve a
quick start-up of the machine.
- Washing tanks:
· 100-litre tank.

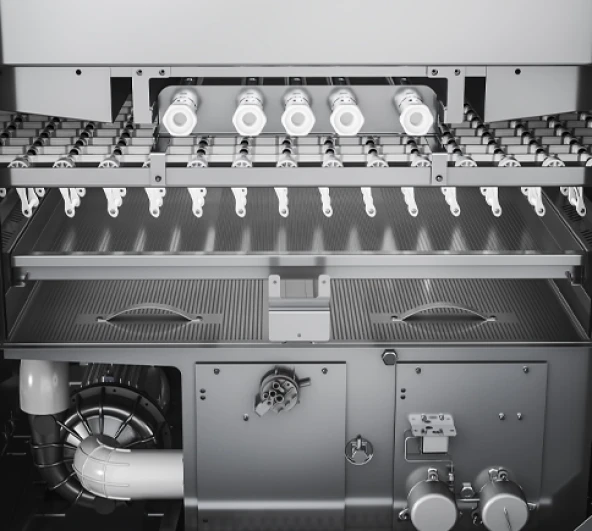

· Washing system consisting of 6 upper arms and 5 lower
arms.

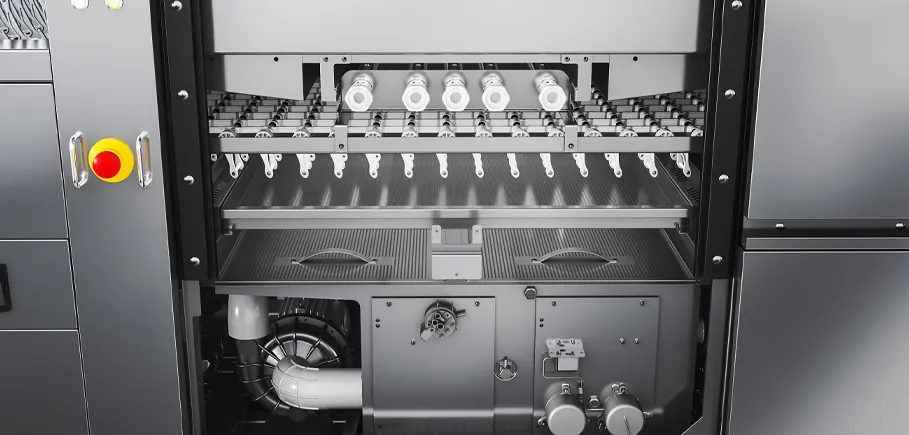

- Stainless steel arms in the pre-wash and wash, removable
for cleaning.
- Triple level filtration in the wash and pre-wash modules.
- The bottom of the tank is stamped to ensure complete
draining and facilitate cleaning.
- Thermally insulated boilers.
- Easily removable stainless steel rinsing arms with high
efficiency rinsing nozzles.
- Adjustable steam suction system that prevents vapours
from escaping.

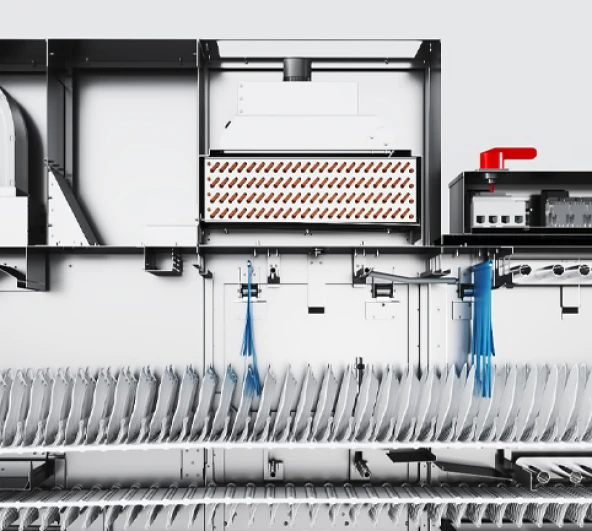

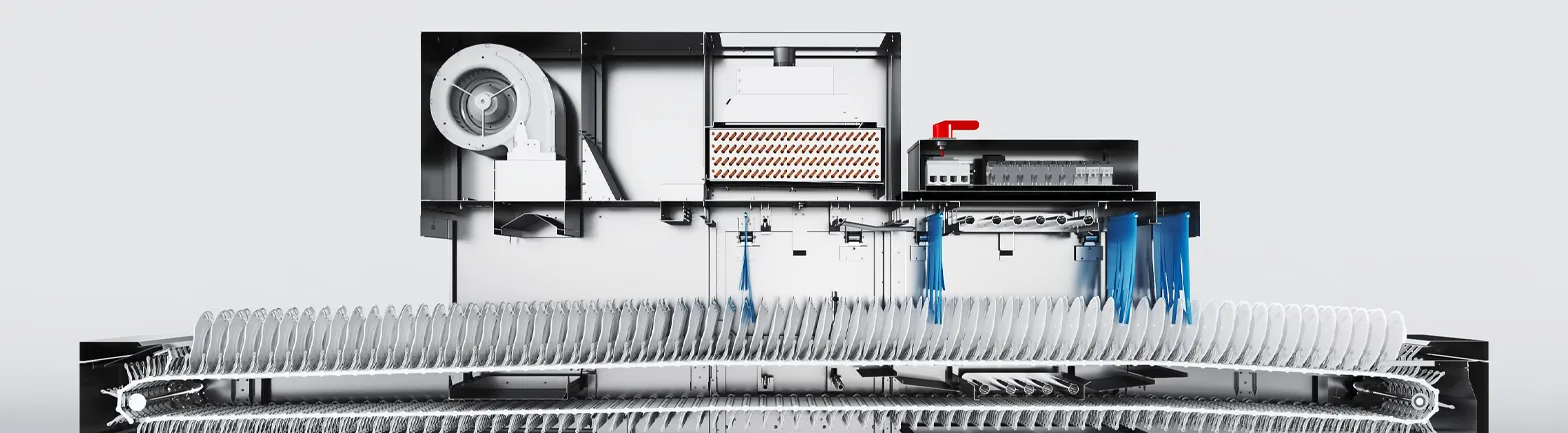

- Energy recovery included, located on the upper part of the
machine, which allows the installed power to be reduced
by 9kW.
- Drying (D) placed on the unloading area and possibility of
adding up to 2 additional dryers.

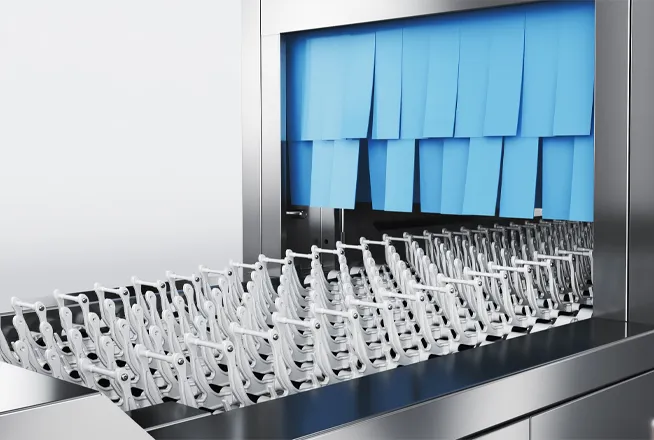

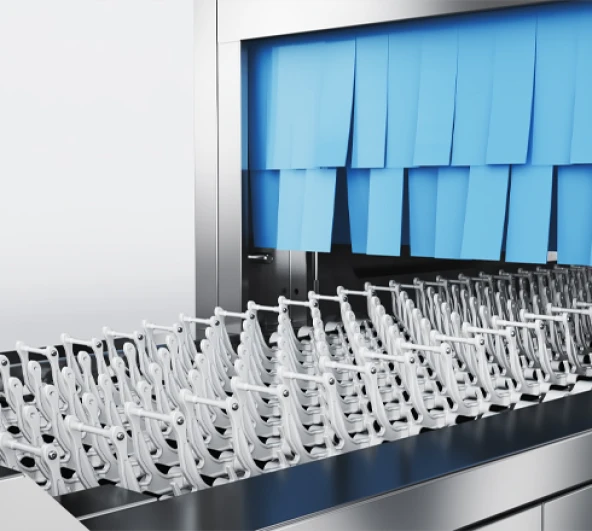

- Curtains resistant to high temperatures and detergents,
which are installed to prevent water splashing and
contamination between modules.
- Detection of belt end with stop and autostart.
- Machine protected against water jets according to IPX5
category.
Height (1) mm 2070
Height with door open mm 2245
Clearance (WxH) mm 630x440
Supply water pressure min. - max. bar 1,5 - 4
Traction motor kW 0,25
Tank capacity lt 100
Tank power kW 18
Washing pump power kW 2,6
PRE-RINSE/RINSE
PRERINSE RINSE
4
Boiler capacity lt - 20
Tank capacity lt 30 -
Boiler heater power kW - 18
Tank resistance power kW 5 -
Rinsing pump power kW 0,26 0,15
DRY DRY D
Heater power kW 7,5
Fan power kW 1,95
